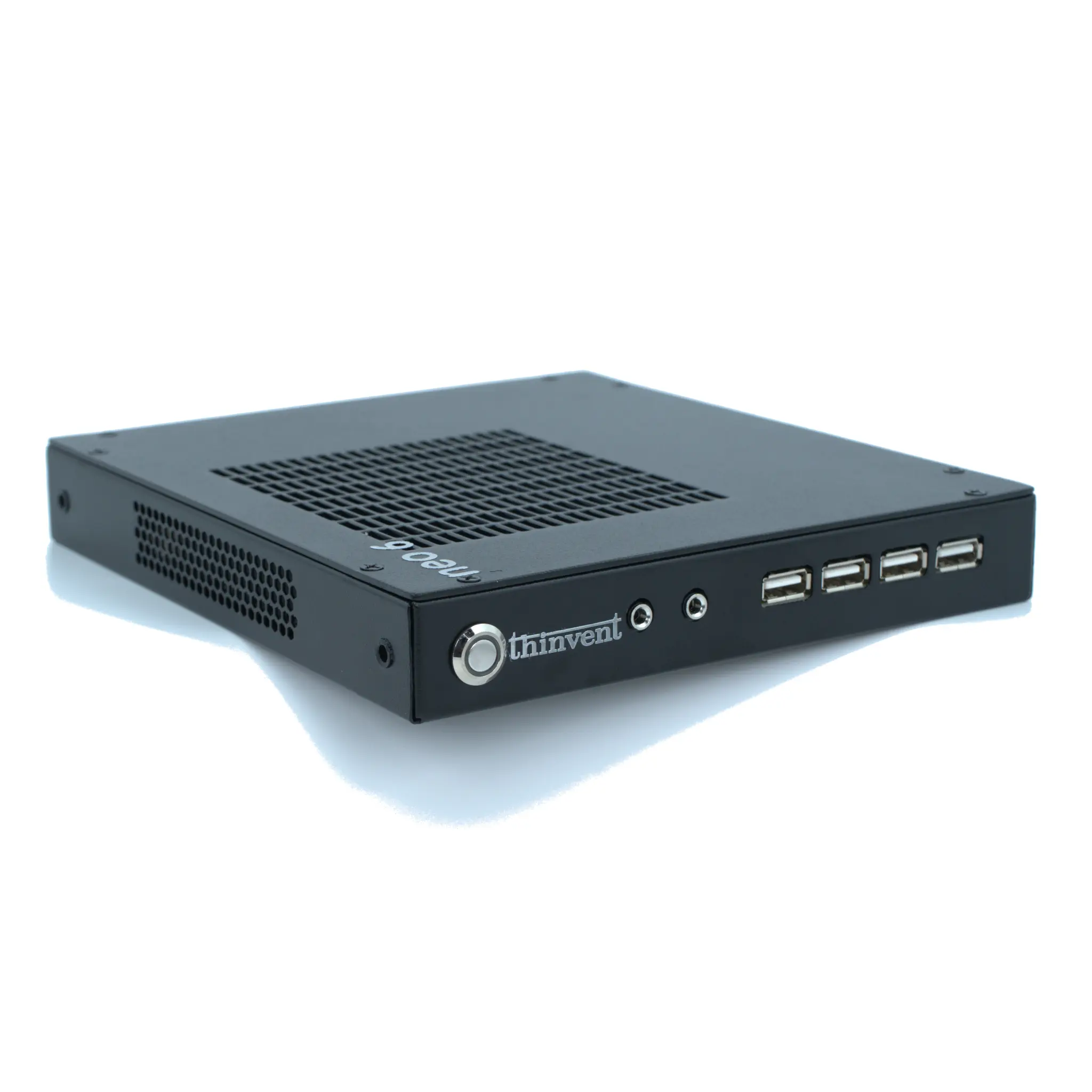

Treo Range of Mini PCs Treo Front Horizontal Perspective view
Treo Range of Mini PCs Treo Front Horizontal view

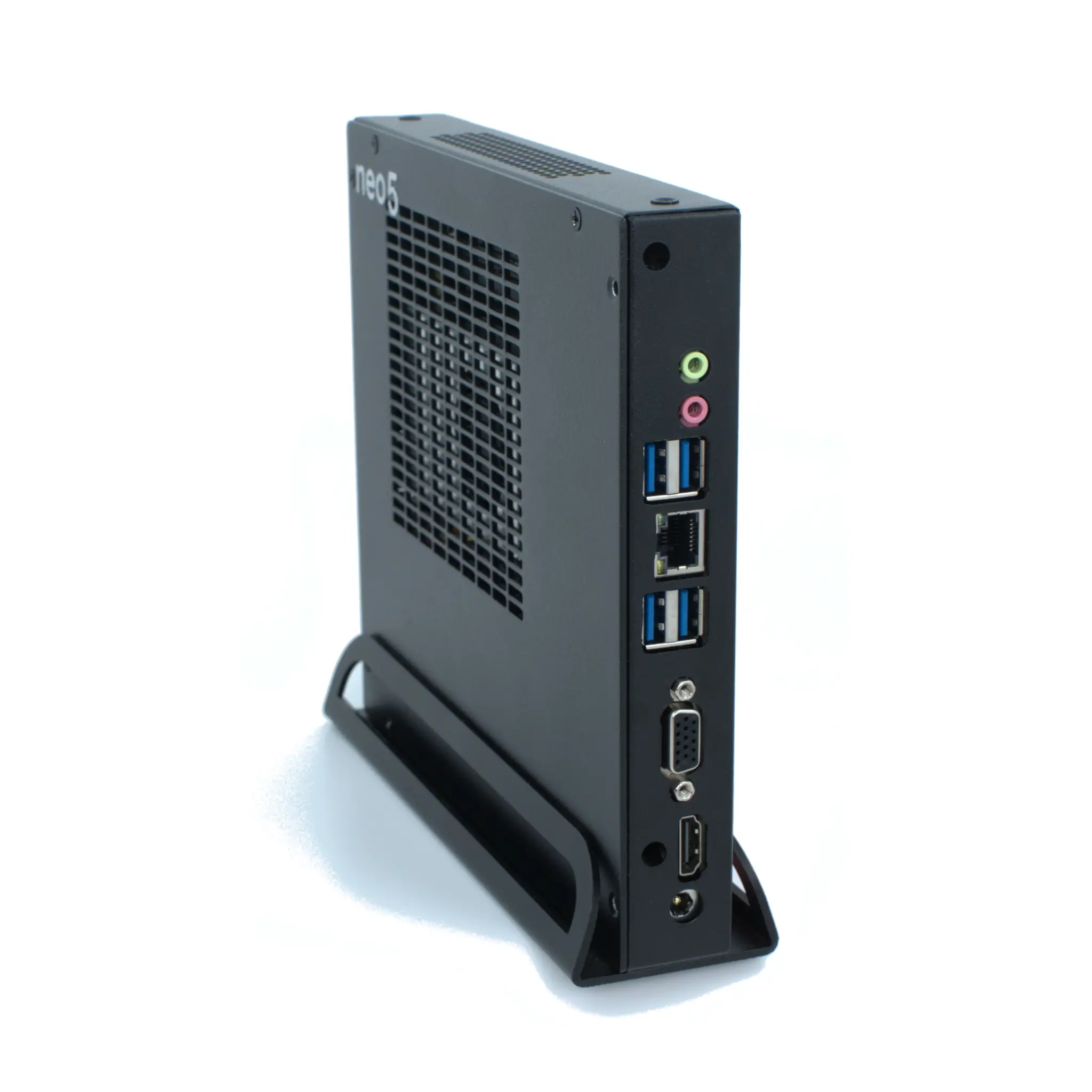

Treo Range of Mini PCs eo N5095A Rear Standing Top Perspective view

Treo Range of Mini PCs

Thinvent Treo: Versatile and Powerful Mini PCs, Tailored to Your Needs

Processor:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
RAM:
SSD Storage:
Wireless:
Operating System:
Accessories:
Specifications
Main Memory 4 GB ~ 64 GB
SSD Storage 128 GB ~ 1 TB
HDMI 1 ~ 2
VGA Yes
Speaker Out Yes
Mic In Yes
USB 3.0 2 ~ 4
USB 2.0 0 ~ 2
Front USB 2.0 4
Front Speaker Out Yes
Front Mic In Yes
Ethernet 1000 Mbps
DC Voltage 12 Volts
DC Current 2 ~ 7 Amps
Power Input 100~240 Volts AC, 50~60 Hz, 0.9 Amps maximum
Cable Length 1 Metre
Operating Temperature 0°C ~ 40°C
Operating Humidity 20% ~ 80% RH, non condensing
Certifications BIS, RoHS, ISO
Dimensions 199.5mm × 181.5mm × 29.5mm
Housing Material Aluminium
Housing Finish Powder Coated
Housing Colour Black
VESA Mount Yes
Assembly Animation

The Thinvent Treo range of mini PCs offers exceptional performance and flexibility in a sleek, compact design. Built with a durable aluminum housing and designed for a wide range of applications, the Treo series provides a customizable computing experience to meet your specific requirements.

Performance That Scales With Your Demands

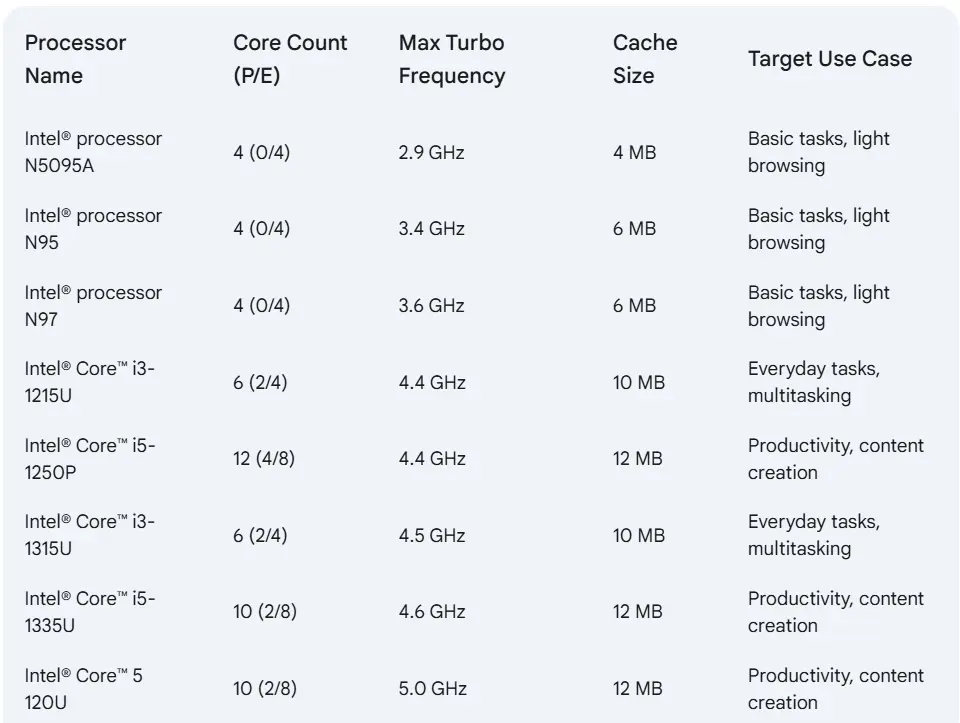

The Thinvent Treo is available with a choice of powerful Intel processors, ensuring you get the perfect balance of performance and efficiency

  • Entry-Level Power: Intel® processor N5095A (4 core, up to 2.9 GHz, 4 MB cache) or Intel® processor N97 (4 core, up to 3.6 GHz, 6 MB cache) for everyday tasks.
  • Balanced Performance: Intel® Core™ i3-1215U, i3-1315U (6 core, up to 4.4/4.5 GHz, 10 MB cache) or Intel® Core™ 5 120U (10 core, up to 5.0 GHz, 12 MB cache) for enhanced productivity.
  • High-Performance Computing: Intel® Core™ i5-1250P or i5-1335U (10/12 core, up to 4.4/4.6 GHz, 12 MB cache) for demanding applications.
Comprehensive Connectivity for Seamless Integration

The Thinvent Treo boasts a wide array of ports for connecting all your peripherals

  • Video Outputs: 1 x HDMI, 1 x VGA for dual display support.
  • Audio: Speaker Out (front and rear), Mic In (front and rear).
  • USB: 4 x USB 3.0 (rear), 4 x USB 2.0 (front).
  • Networking: 1 x Gigabit Ethernet (1000 Mbps).
Customizable Operating Systems and Wireless Connectivity
Tailor your Treo mini PC to your specific needs with a choice of operating systems
  • Windows 11 IoT
  • Windows 11 Pro
  • Ubuntu Linux
Choose your preferred wireless connectivity option
  • No WiFi
  • Dual Band WiFi
  • Dual Band, Dual Antenna WiFi
Durable and Versatile Design

The Thinvent Treo features a robust aluminum housing with a sleek, powder-coated black finish. Its compact dimensions (199.5mm × 181.5mm × 29.5mm) and VESA mount compatibility allow for flexible placement in any environment.

Reliable and Certified

Designed for reliability, the Treo operates on a 12V DC, 2A power supply with a wide-range AC input (100~240V, 50~60Hz). It is built to operate in environments with temperatures ranging from 0°C to 40°C and humidity levels of 20% to 80% RH (non-condensing). The Thinvent Treo is RoHS and ISO certified, ensuring compliance with stringent quality and safety standards.

Key Features
  • Choice of Intel Processors: N5095A, N97, i3-1215U, i3-1315U, i5-1250P, i5-1335U, Core 5 120U.
  • Choice of Operating Systems: Windows 11 IoT, Windows 11 Pro, Ubuntu Linux.
  • Choice of WiFi: No WiFi, Dual Band WiFi, Dual Band, Dual Antenna WiFi.
  • HDMI and VGA for Dual Display
  • Extensive USB Connectivity (USB 3.0, USB 2.0)
  • Gigabit Ethernet
  • Front and Rear Audio Ports
  • Durable Aluminum Housing
  • VESA Mount Compatible
  • RoHS and ISO Certified
  • 1 Metre Power Cable
  • Power input 100~240 Volts AC, 50~60 Hz, 0.9 Amps maximum
  • DC Voltage 12 Volts, DC Current 2 Amps.
Ideal For
  • Business Professionals
  • Home Offices
  • Small Businesses
  • Industrial Control
  • Digital Signage
  • Thin Client Applications
  • Education

The Thinvent Treo range of mini PCs offers a powerful, customizable, and reliable computing solution for a wide range of needs.
