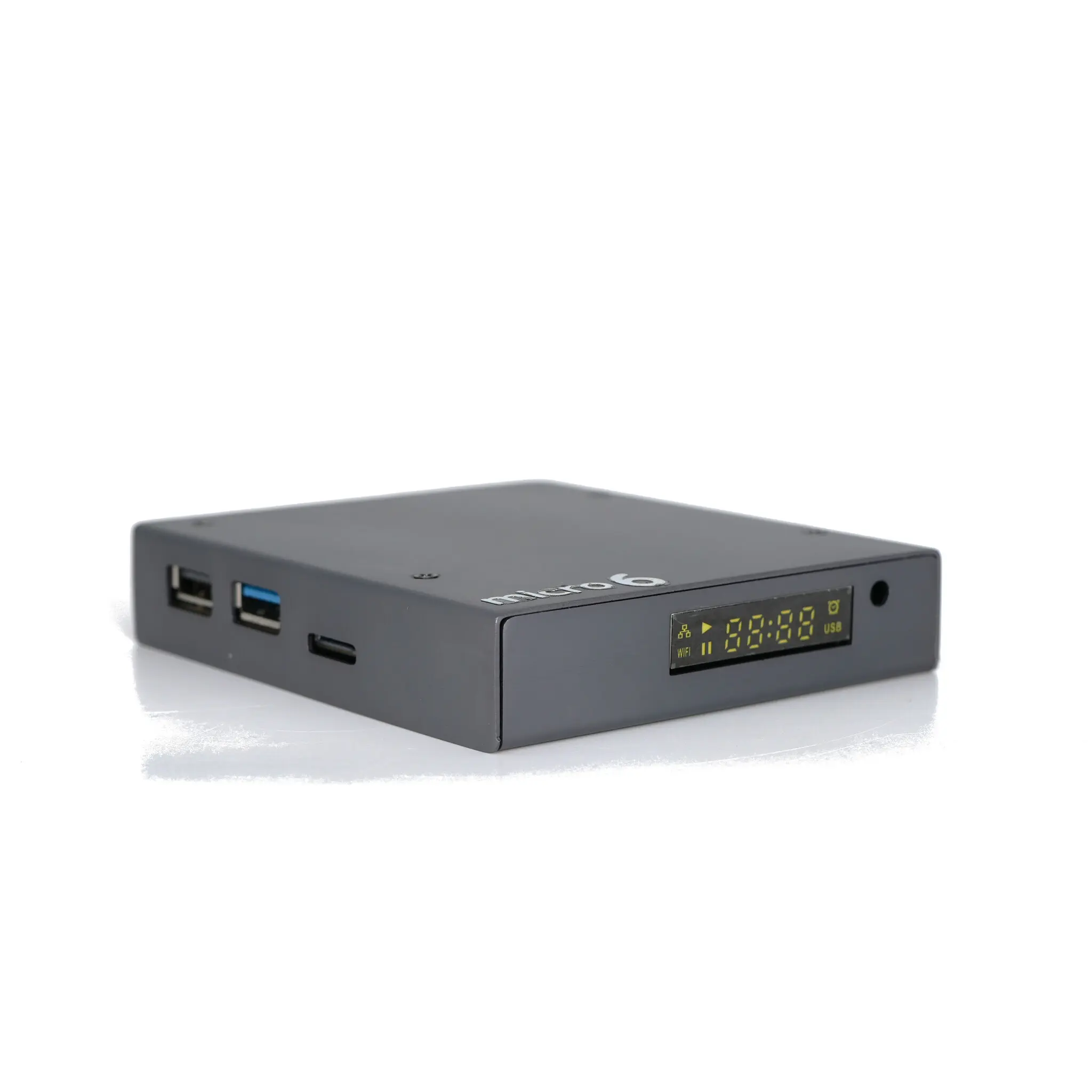

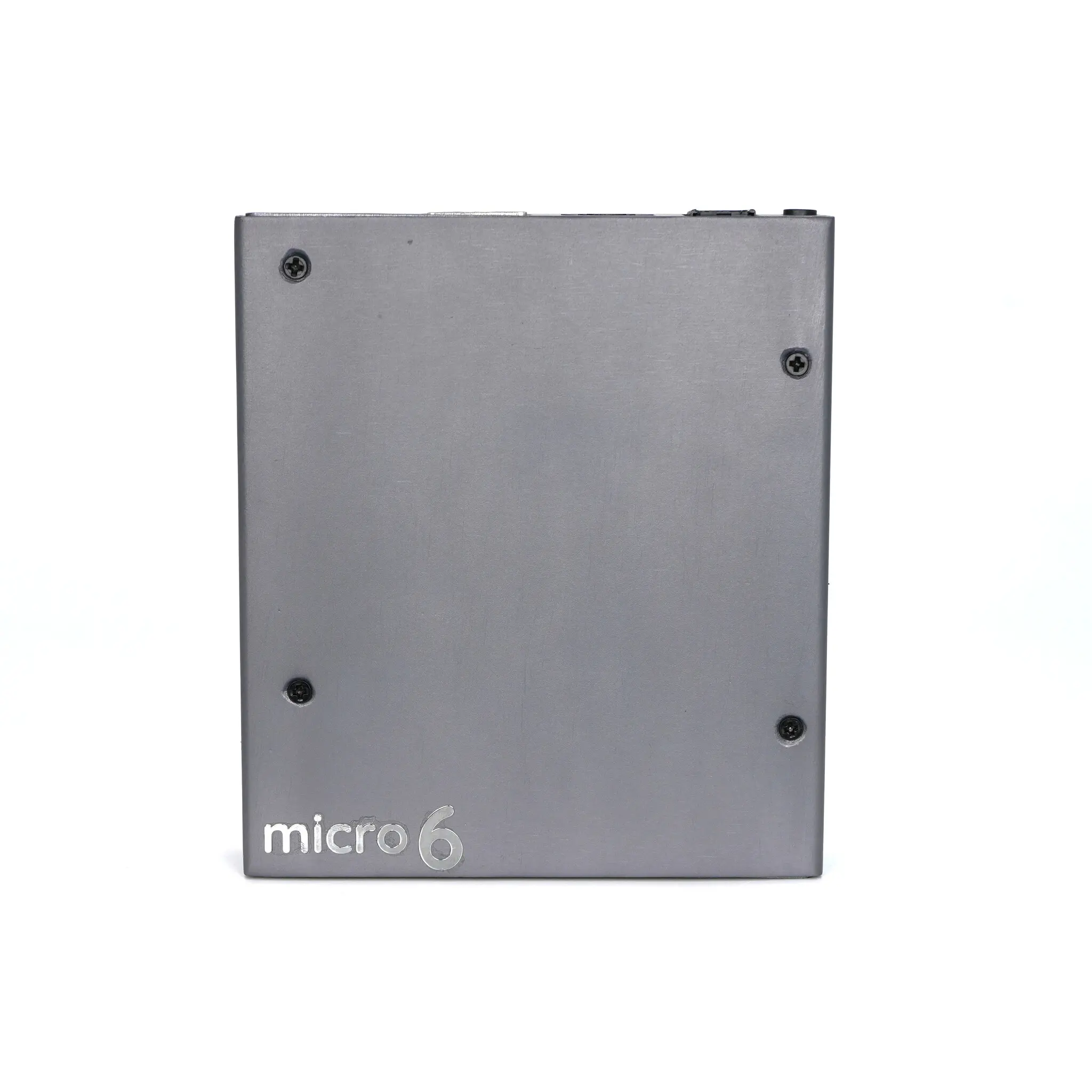

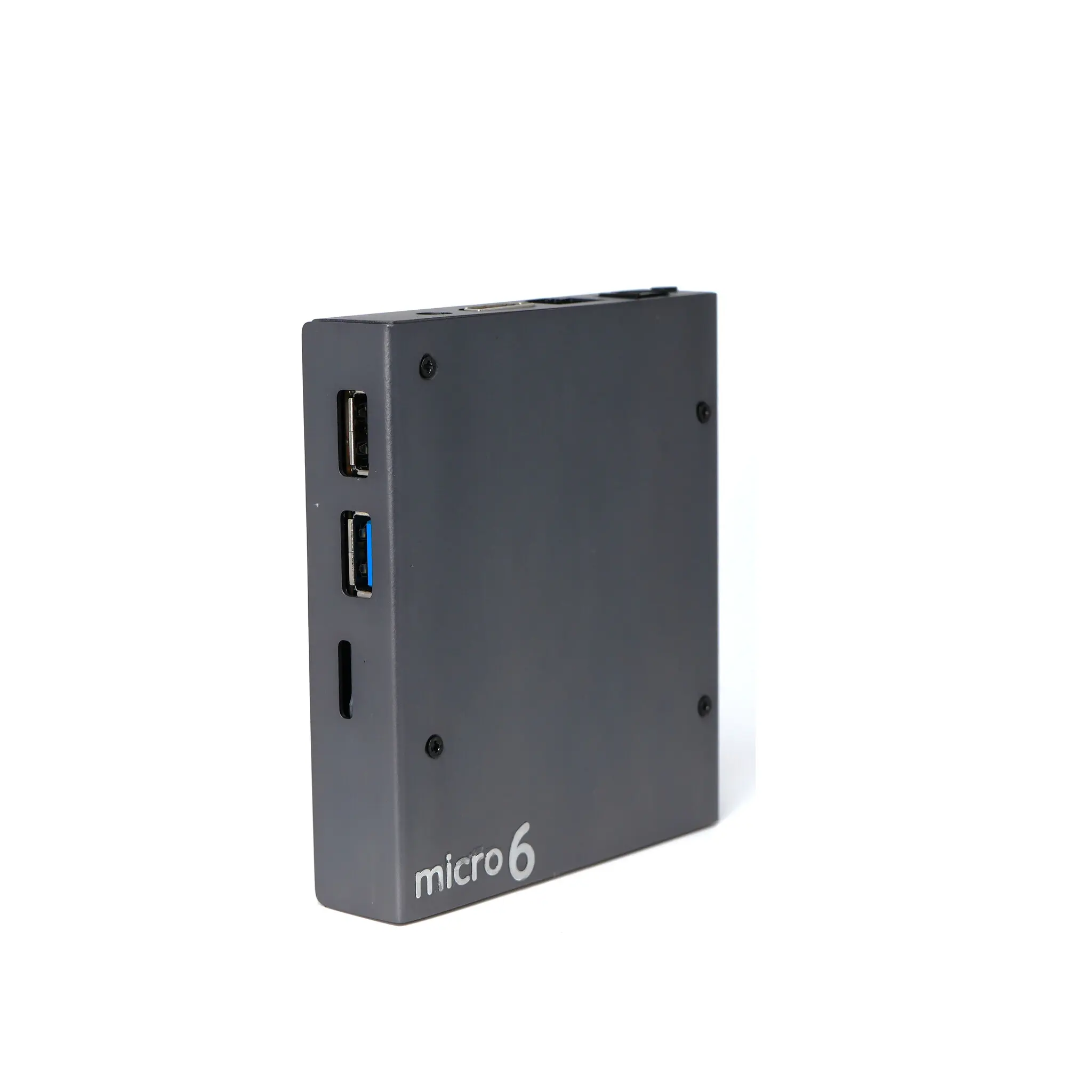

Thinvent® Micro 6 Pro Mini PC, ARM® Cortex A55 processor (4 core, up to 1.9 GHz, 1 MB cache), 4GB Onboard RAM, 64GB eMMC Storage, 5V 2A Adapter, Dual Antenna WiFi, Thinux™ Embedded Linux, Wired Optical Scroll Mouse
SKU: P-6P-o4-e64-5_2P-D-Thinux-Mo
Specifications
Processing
| Cores | 4 |
| Max Frequency | 1.9 GHz |
| Cache | 1 MB |
| Main Memory | 4 GB |
| SSD Storage | 64 GB |
Display
| HDMI | 1 |
Audio
| Speaker Out | 1 |
Connectivity
| USB 3.0 | 1 |
| USB 2.0 | 1 |
| microSD Slot | 1 |
Networking
| Ethernet | 100 Mbps |
| Wireless Networking | Wi-Fi, dual antenna, dual band |
Power
| DC Voltage | 5 Volts |
| DC Current | 2 Amps |
| Power Input | 100~275 Volts AC, 50~60 Hz, 2 Amps maximum |
| Power Consumption | 7 Watts maximum |
| Cable Length | 1.7 Metre |
Environmental
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 80% RH, non condensing |
| Certifications | BIS, RoHS, ISO |
Physical
| Dimensions | 102mm × 90mm × 21mm |
| Housing Material | Aluminium |
| Housing Finish | Anodised |
| Housing Colour | Dark Grey |
Operating System
| Operating System | Thinvent® Thinux™ Embedded Linux |
| OS Features |
|
